Product introduction

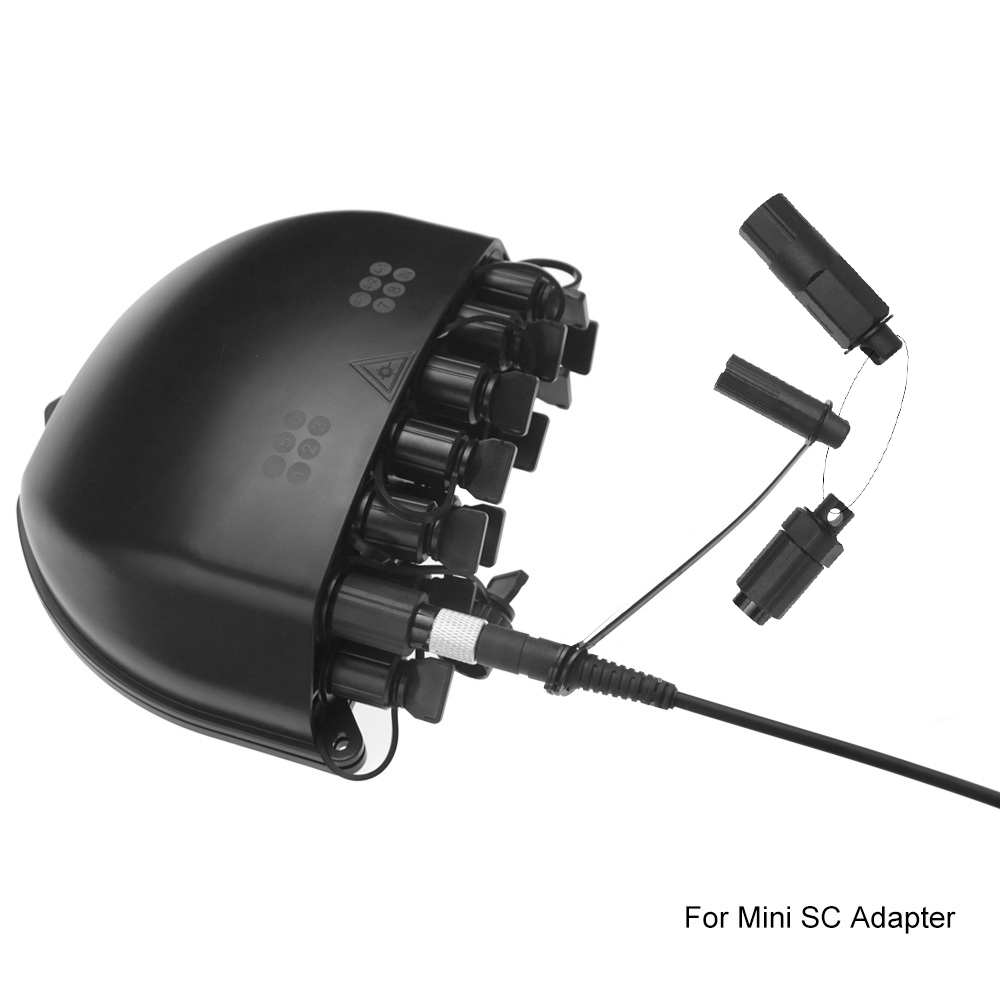

The slim-mini-optitap 3-in-1 outdoor waterproof connector can be perfectly compatible with silm adapter /optitap adapter /MINI adapter through replacement parts. The product is made of high-performance, high-strength and high temperature resistant PEI plastic material. It can be used in harsh outdoor environments and can be widely used in pre-connected FTTH networks, The cable is a high-performance LSZH drop cable, Can fit for drop cables of different structures such as 2*3/2*5/∅3.0/∅5.0
Feature
– IP68 waterproof and dustproof protection grade;
-Made of high strength, high temperature resistant PEI high-quality plastic, can be installed in harsh environments;
-40ºC~85ºC operating temperature;
– Can be perfectly compatible with silm adapter /optitap adapter /MINI adapter through replacement parts;
– Low insertion loss and high return loss;
– Meet the flame retardant requirements of UL94-V0；
– Meet RoHS environmental requirements；
-Can be installs without special tooling;
– Fit for cables of different structures;
Performance parameter
| Item | Specifications |
| Connector type | SC/APC or SC/UPC |
| Cable type | 2*3/2*5/∅3.0/∅5.0 |
| Fiber type | G657A2 |
| Tensile strength | ≥120N(2*3)/ ≥200N(∅3.0) |
| Insertion loss (dB) | ≤ 0.3 |
| Return loss (dB) | ≥60(APC), 50(UPC) |
| Operating Wave Length | 1310nm/1550nm |
| Working temperature (℃) | -40~+70 |
| Storage temperature (℃) | -40~+70 |
| Fiber Length | 50/100/150/200/250/300m or Customized |
